Routing events dynamically using Kafka Streams

In a previous blog post, we saw how to use CDC pattern to turn a SQL database into a stream of events.

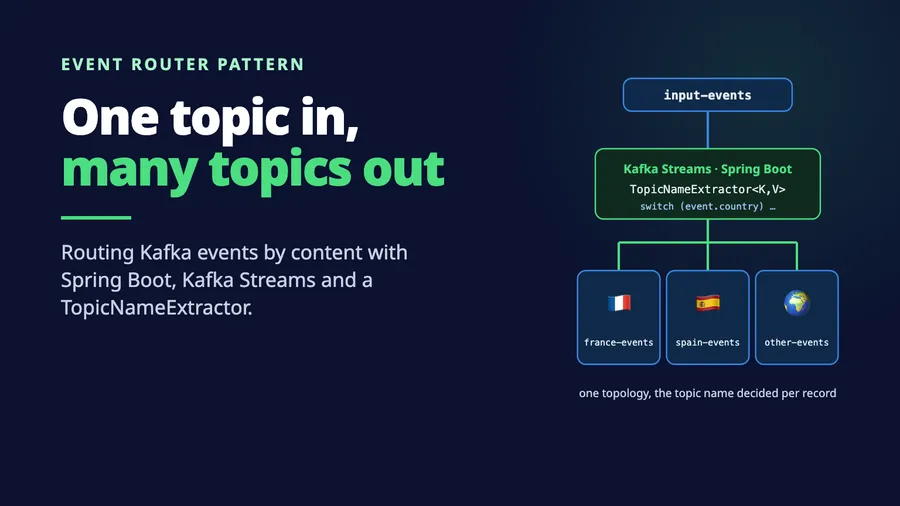

Today we will see how to route events from one Kafka topic to multiple topics using Kafka Streams and Spring Boot.

This Event Router pattern might be particularly useful when an external system publish into a single Kafka topic.

Step 1 : Docker services

We will start our journey by running a Confluent stack on Docker Compose with :

Zookeeper
Confluent Server (a.k.a Kafka)
Schema Registry
Confluent Control Center
AKHQ

services:

  zookeeper:
    image: confluentinc/cp-zookeeper
    hostname: zookeeper
    container_name: zookeeper
    ports:
      - "2181:2181"
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000

  broker:
    image: confluentinc/cp-server
    hostname: broker
    container_name: broker
    depends_on:
      - zookeeper
    ports:
      - "9092:9092"
      - "9101:9101"
    environment:
      KAFKA_BROKER_ID: 1
      KAFKA_ZOOKEEPER_CONNECT: 'zookeeper:2181'
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: PLAINTEXT:PLAINTEXT,PLAINTEXT_HOST:PLAINTEXT
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://broker:29092,PLAINTEXT_HOST://localhost:9092
      KAFKA_METRIC_REPORTERS: io.confluent.metrics.reporter.ConfluentMetricsReporter
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0
      KAFKA_CONFLUENT_LICENSE_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_CONFLUENT_BALANCER_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: 1
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: 1
      KAFKA_JMX_PORT: 9101
      KAFKA_JMX_HOSTNAME: localhost
      KAFKA_CONFLUENT_SCHEMA_REGISTRY_URL: http://schema-registry:8081
      CONFLUENT_METRICS_REPORTER_BOOTSTRAP_SERVERS: broker:29092
      CONFLUENT_METRICS_REPORTER_TOPIC_REPLICAS: 1
      CONFLUENT_METRICS_ENABLE: 'true'
      CONFLUENT_SUPPORT_CUSTOMER_ID: 'anonymous'

  schema-registry:
    image: confluentinc/cp-schema-registry
    hostname: schema-registry
    container_name: schema-registry
    depends_on:
      - broker
    ports:
      - "8081:8081"
    environment:
      SCHEMA_REGISTRY_HOST_NAME: schema-registry
      SCHEMA_REGISTRY_KAFKASTORE_BOOTSTRAP_SERVERS: 'broker:29092'
      SCHEMA_REGISTRY_LISTENERS: http://0.0.0.0:8081

  control-center:
    image: confluentinc/cp-enterprise-control-center
    hostname: control-center
    container_name: control-center
    depends_on:
      - broker
      - schema-registry
    ports:
      - "9021:9021"
    environment:
      PORT: 9021
      CONTROL_CENTER_BOOTSTRAP_SERVERS: 'broker:29092'
      CONTROL_CENTER_SCHEMA_REGISTRY_URL: "http://schema-registry:8081"
      CONTROL_CENTER_CONNECT_CONNECT-DEFAULT_CLUSTER: 'http://connect:8083'
      CONTROL_CENTER_CONNECT_HEALTHCHECK_ENDPOINT: '/connectors'
      CONTROL_CENTER_REPLICATION_FACTOR: 1
      CONTROL_CENTER_INTERNAL_TOPICS_PARTITIONS: 1
      CONTROL_CENTER_MONITORING_INTERCEPTOR_TOPIC_PARTITIONS: 1
      CONFLUENT_METRICS_TOPIC_REPLICATION: 1

  akhq:
    image: tchiotludo/akhq
    hostname: akhq
    container_name: akhq
    depends_on:
      - broker
      - schema-registry
    ports:
      - "8080:8080"
    environment:
      AKHQ_CONFIGURATION: |
        akhq:
          connections:
            docker-kafka-server:
              properties:
                bootstrap.servers: "broker:29092"
              schema-registry:
                url: "http://schema-registry:8081"

Step 2 : Spring Boot boilerplate

We will use Spring Initializr to generate a Spring Boot project with the following settings :

Maven
Java 23
Spring 3.4.0

and the following dependencies :

Spring for Apache Kafka
Spring for Apache Kafka Streams

After generating the project, I manually added two other dependencies :

jackson-databind for JsonNode
connect-json for JsonSerializer & JsonDeserializer

You should end up with a similarly pom.xml file :

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>3.4.0</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>

  <groupId>com.vspiewak</groupId>
  <artifactId>kstream-events-router</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <name>kstream-events-router</name>
  <description>Kafka Stream Events Router</description>

  <properties>
    <java.version>23</java.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter</artifactId>
    </dependency>
    <dependency>
      <groupId>org.apache.kafka</groupId>
      <artifactId>kafka-streams</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.kafka</groupId>
      <artifactId>spring-kafka</artifactId>
    </dependency>
    <dependency>
      <groupId>org.apache.kafka</groupId>
      <artifactId>connect-json</artifactId>
      <version>3.9.0</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.18.1</version>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>org.springframework.kafka</groupId>
      <artifactId>spring-kafka-test</artifactId>
      <scope>test</scope>
    </dependency>
  </dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>

</project>

Step 3 : application.yaml

Our Kafka stream application will consume an input topic and route events to different topics based on the country field of the event :

spring:
  application:
    name: kstream-events-router

  kafka:
    bootstrap-servers: localhost:9092
    properties:
      default.deserialization.exception.handler: org.apache.kafka.streams.errors.LogAndContinueExceptionHandler
    consumer:
      auto-offset-reset: earliest
    topics:
      inputTopic: input-events
      franceTopic: france-events
      spainTopic: spain-events
      otherTopic: other-events

Note : We use default.deserialization.exception.handler property to configure a Log & Continue behavior on deserialization exceptions. This is useful for malformed events (a.k.a Poison Pills)

We will also use a TopicProperties record to load our custom properties :

@ConfigurationProperties(prefix = "spring.kafka.topics")
public record TopicProperties(
        String inputTopic,
        String franceTopic,
        String spainTopic,
        String otherTopic
) {
}

Note : Use @EnableConfigurationProperties(value={TopicProperties.class}) to configure the custom properties 😉

Step 4 : Insert some events on start

We need to implement a simple KafkaProducer service :

@Service
public class KafkaProducer {

    @Autowired
    private KafkaTemplate<String, String> kafkaTemplate;

    public void sendMessage(String topicName, String key, String message) {

        kafkaTemplate
                .send(topicName, key, message)
                .whenComplete((_, ex) -> {
                    if (ex == null) {
                        log.info("message sent to topic: {}", message);
                    } else {
                        log.error("error sending message: {}", ex.getMessage());
                    }
                });

    }

}

Then we can easily insert few events on start using the Spring ApplicationReady Event as follow :

@Component
public class OnStartup {

    @Value("${spring.kafka.topics.inputTopic}")
    String topicName;

    @Autowired
    private KafkaProducer kafkaProducer;

    @EventListener(ApplicationReadyEvent.class)
    public void onStartup() {

        payloads.forEach(payload -> {
            kafkaProducer.sendMessage(topicName, payload[0], payload[1]);
        });

    }

    public static final List<String[]> payloads = List.of(
            new String[]{"poison pill", "poison pill"},
            new String[]{
                    "event-id-1",
                    """
                    { "country": "france", "message": "Bonjour ! 🇫🇷" }
                    """
            },
            new String[]{
                    "event-id-2",
                    """
                    { "country": "spain", "message": "¡Buen día! 🇪🇸" }
                    """
            },
            new String[]{
                    "event-id-3",
                    """
                    { "country": "japan", "message": "こんにちは 🇯🇵" }
                    """
            }
    );
}

Step 5 : Implementing TopicNameExtractor<K,V>

We will implement TopicNameExtractor<String,JsonNode> as follow :

public class CountryTopicExtractor implements TopicNameExtractor<String, JsonNode> {

    private final TopicProperties topicProperties;

    public CountryTopicExtractor(TopicProperties topicProperties) {
        this.topicProperties = topicProperties;
    }

    @Override
    public String extract(String key, JsonNode value, RecordContext recordContext) {

        var country = value.get("country").asText();

        return switch (country) {
            case "france" -> topicProperties.franceTopic();
            case "spain" -> topicProperties.spainTopic();
            default -> topicProperties.otherTopic();
        };

    }
}

Step 6 : Topology Definition

We can finally implement our Kafka Streams Topology as follow :

Serializer<JsonNode> jsonNodeSerializer = new JsonSerializer();
Deserializer<JsonNode> jsonNodeDeserializer = new JsonDeserializer();
Serde<JsonNode> jsonNodeSerde = Serdes.serdeFrom(jsonNodeSerializer, jsonNodeDeserializer);

builder
        .stream(
                topicProperties.inputTopic(),
                Consumed.with(Serdes.String(), jsonNodeSerde)
                        .withName("input-source")
        )
        .to(new CountryTopicExtractor(topicProperties));

return builder.build();

Running the application

You need to start docker services using docker compose up -d and then launch the Spring Boot application using ./mvnw clean spring-boot:run

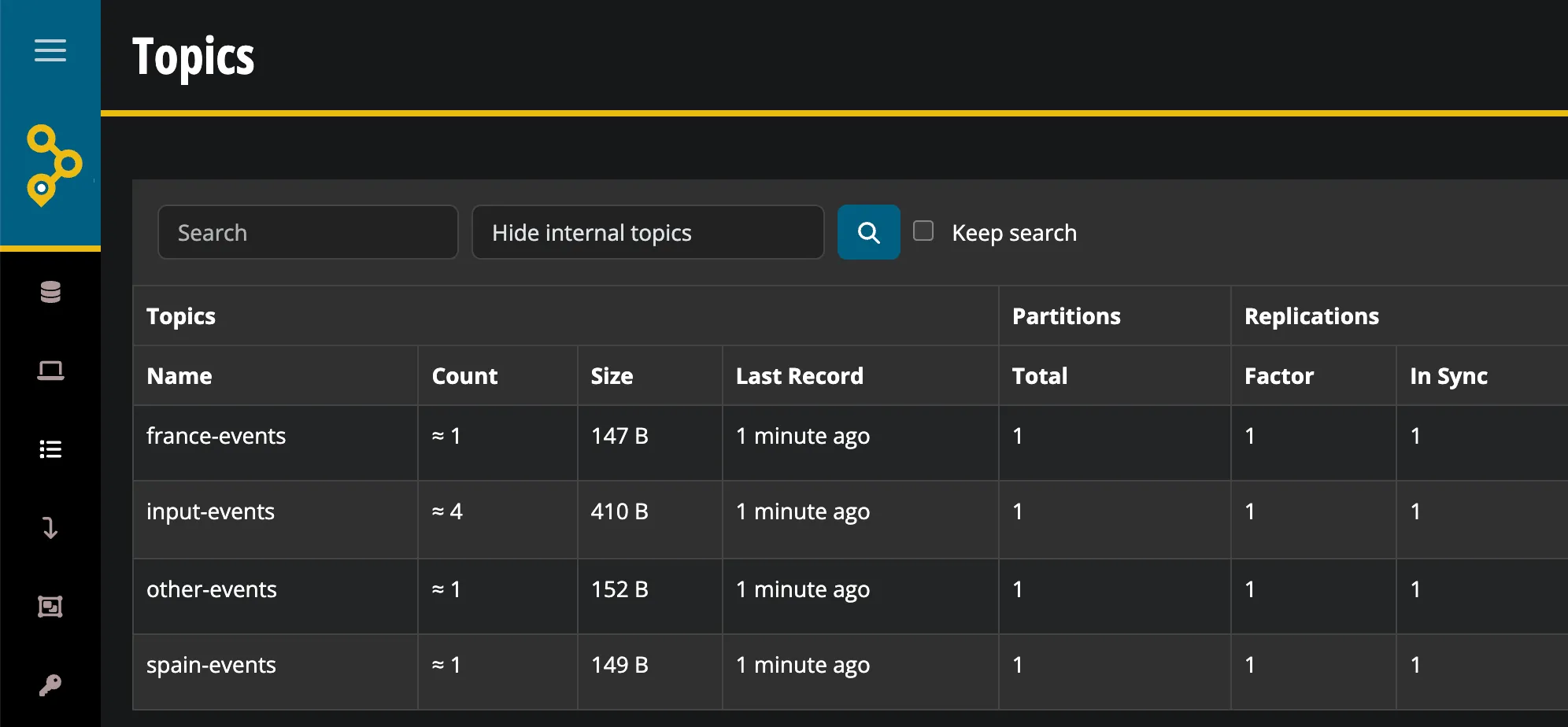

AKHQ will be available at http://localhost:8080

AKHQ
